              వాటర్ జెట్ స్పాంజింగ్ మెషీన్
              • వాటర్ జెట్ స్పాంజింగ్ మెషీన్వాటర్ జెట్ స్పాంజింగ్ మెషీన్

              వాటర్ జెట్ స్పాంజింగ్ మెషీన్

              . అడ్వాన్స్‌డ్ వాటర్ జెట్ స్పాంజ్ కట్టింగ్ మెషిన్, లేజర్ కట్టింగ్ మెషిన్, ఆటో బెండర్ మెషిన్, క్రీసింగ్ కట్టింగ్ మెషిన్, టెక్నికల్ సపోర్ట్ మరియు అమ్మకాల తర్వాత అద్భుతమైనది.
              మోడల్:ADW-WJ

              విచారణ పంపండి

              ఉత్పత్తి వివరణ

              Water Jet Sponge Cutting Machine

              Shenzhen Adewo Automation Technology Co.,ltd. is China manufacturer & supplier who mainly produces European Manual Bridge Machine, Water Jet Sponge Cutting Machine, Small Table Plywood Laser Cutting Machine, Die Boards Steel Rule Puller with many years of experience. Hope to build business relationship with you.

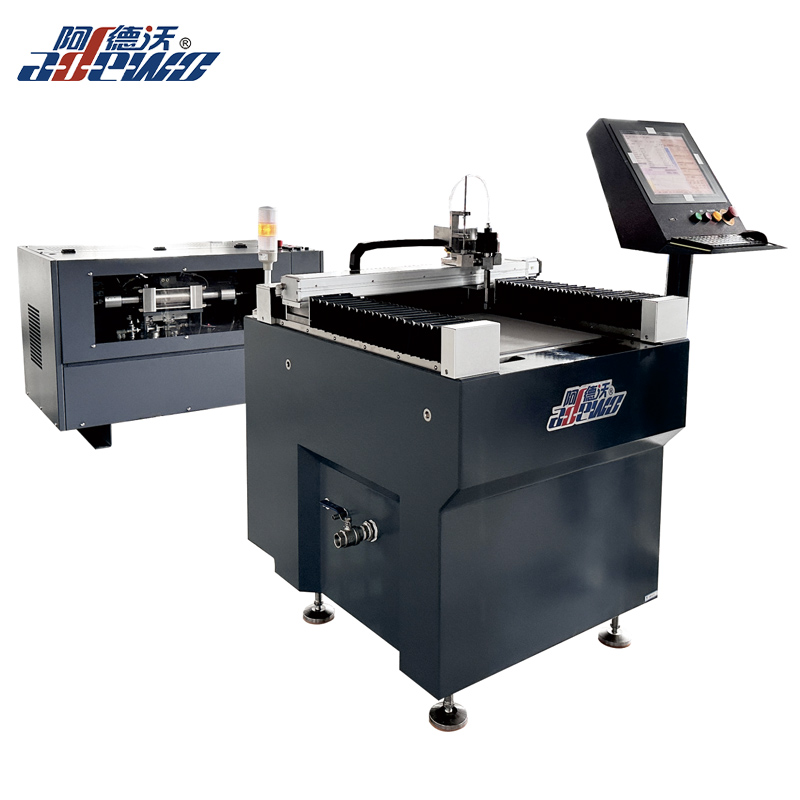

              Picture of (ADW-WJ)Water Jet Sponge Cutting Machine for reference:



              1.Product Features:

              1.Mineral casting body assures long term stability and accuracy;


              2.Servo motor drive Dual-belt transmission structure;


              3.Linear guiding system made by Stainless and aluminum extruded sections with high strucural rigidity;


              4.Stainless steel honeycomb grid with long durability;


              5.Professional rubber built and nest software impact;


              6.Direct DXF file data drive cutting, transferred via network.




              2.Technical Parameters of Water Jet Sponge Cutting Machine

              X-Y cutting range 510×510mm
              Max cutting thickness             60mm
              Standard cutting speed 5m/min
              Max cutting speed 30m/min
              Cutting material Rubber, Sponse
              Power transmission and guiding system   Servo motors system
              Driving and control Servo motors system
              Control Software PRC
              File format DXF, PLF, ENG, G-code, CF2
              High pressure pump
              Pump with major components imported
              Pump power and Max pressure
              7.5kw, 300Mpa
              Water Flow Rate
              >1L/min

              Cutting accuracy (Depend on the material

              texture and thickness)

              0.1~0.3mm
              Positioning accuracy <0.08mm
              Positioning speed
              30m/min
              Laying on grid Honey comb structure of stainless steel
              Air consumption
              0.6Mpa
              Power supply Three phase 380V, 50-60Hz
              Machine Dimension
              1486×1110×1402mm
              High pressure pump dimension
              1480×870×920mm
              Machine weight
              1100KGS
              High pressure pump weight 800KGS





              3.FAQ:

              1.What’s price term?

              (1)FOB Shenzhen China

              (2)CIF

              (3)DDP


              2. What’s payment term?

              30% T/T as down payment, 70% T/T before delivery.


              3.What about lead time of Water Jet Sponge Cutting Machine?

              10-15 working days.


              4.How about installation and training of Water Jet Sponge Cutting Machine?

              English software, installation, related training user manual and videos are available for end-users.

              We provide remote support to customers all over the world.

              Our technical service is always available at services@china-adewo.com.
